Net Pyramid rope course Adventure Park High altitude rope net array Jungle crossing Net Pyramid

Original design Liqi Adventure Park, Net Pyramid comes straight from Egypt to embellish your treetop adventure course ! Made in our production workshop in Normandy, Net Pyramid combines woodworking with rope braiding techniques. We design this module from A to Z, you only have to take care of the assembly.

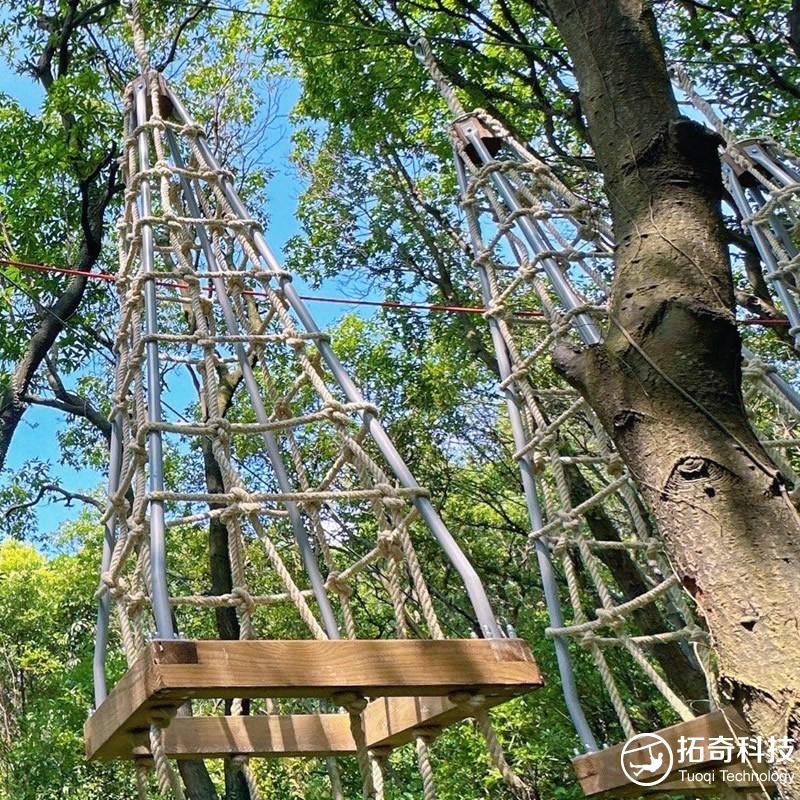

Net Pyramid is made up of a class 4 autoclave wood base and 4 reinforced aluminium retaining bars ⌀ 30 mm on which our team of riggers - threaders braids a 16 mm diameter textured polypropylene rope. At the tip of Net Pyramid, a head in exotic wood allows to join the entire thing with ⌀ 24 mm lock nuts and a ⌀ 20 mm hanger.

The dimensions of the wooden structure on the ground are 80 cm x 80 cm. Net Pyramid measures a total of 2.10 m.

ATTENTION : to assemble Net Pyramid, make 4 Ø5mm pre-drilled holes in the wooden head, on the flat area, to fix the 4 bars with the bottom anchors.

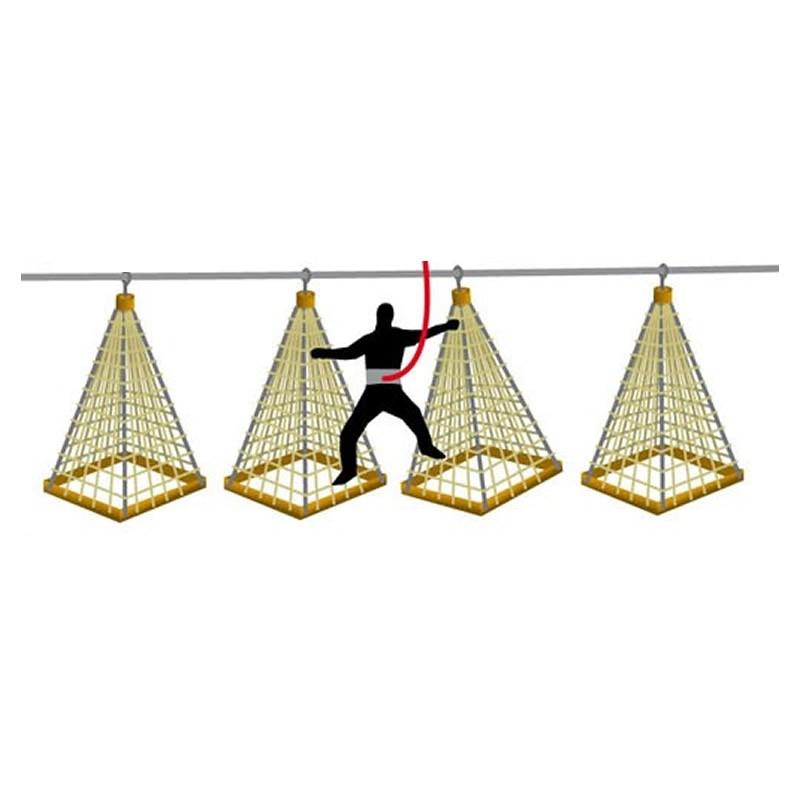

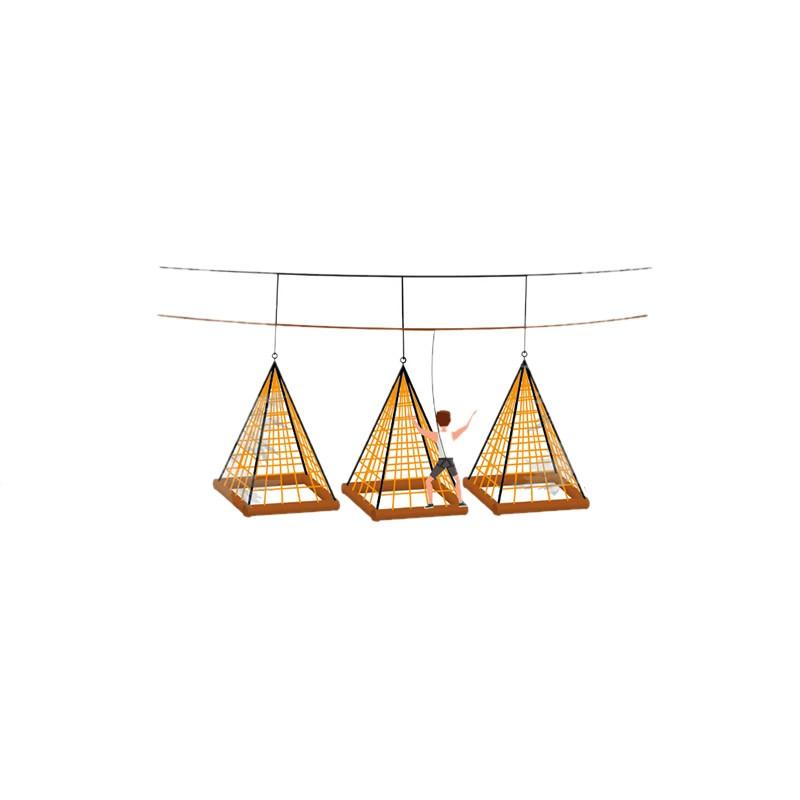

Net Pyramid is a rather complex play module that will perfectly suit your red courses. Your users will have to hang on to Net Pyramids, one after the other, until they reach the reception platform. It will take skill and concentration to complete the crossing.

Specifications

Dimensions Dimension of the base80 x 80 cm

Height 2,50m

Material: wood base treated autoclave class 4Exotic wood head

Rope diameter Ø 16 mm

Material of rope Polypropylen

Diameter of suspension Ø 20 mm

Compositions 4 reinforced aluminum bars Ø 30 mm. Brake nut Ø 24 mm.
